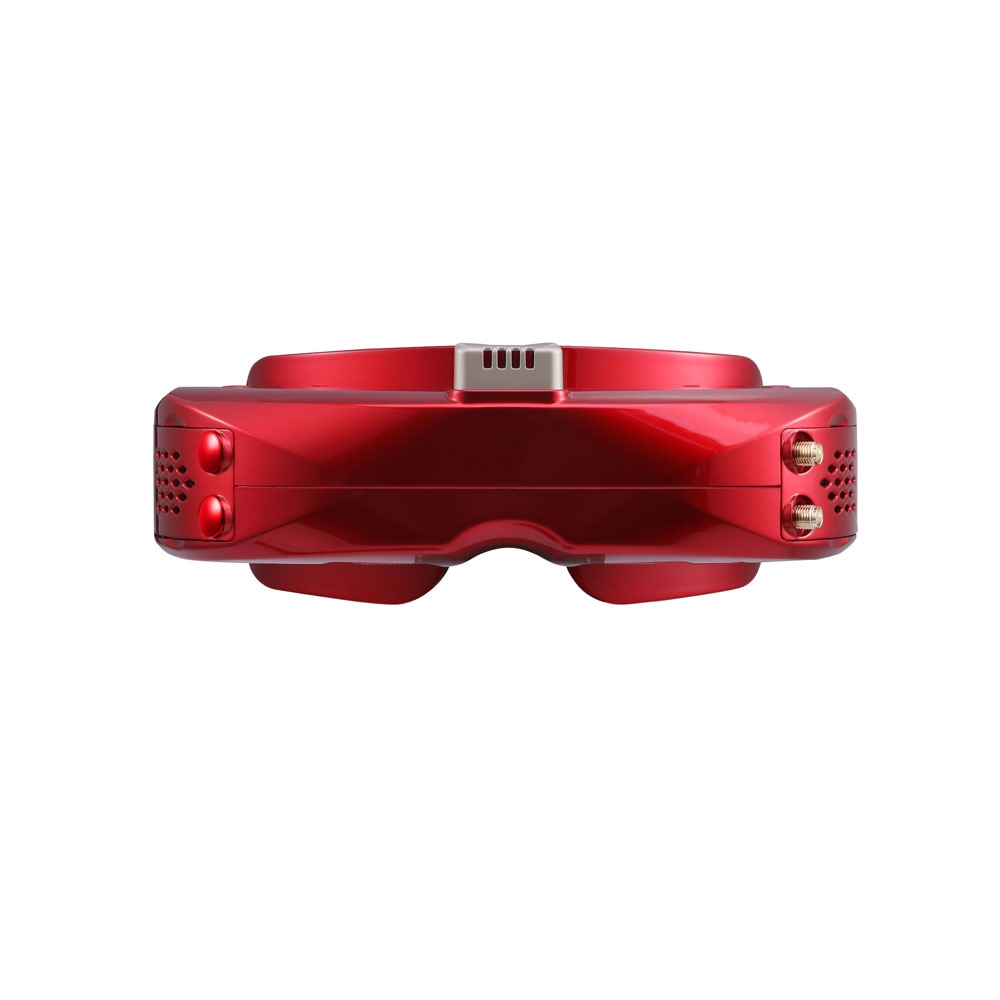

The SKY04X is First skyzone goggle with focus adjustment, the 1280*960 high resolution screen have vivid color and high contrast ration, pilot can see more details in the racing .

With steadyview receiver , the receiver merge two signals to one, avoid image tearing and rolling, make image more stable and clear in challenging condition.

The new designed optics have focus adjustment feature and 46 degree Field of view, give pilots moreimmersive FPV experience.

The new OS with 10 languages to set select, pilot have no trouble with the menu system, with shuttle

wheel and new user interface, pilot can set all the settings just by rolling the wheel without taking off the goggle.

Screen:OLED

Resolution:1280X960

FOV（Diagonal）:46°

Aspect Ratio:4:3/16:9

Focus:-6~+6 adjustable

Interpupillary distance (IPD):58-71mm

Receiver:5.8Ghz 48CH SteadyView Receiver

Language:10 Languages

Power Supply:DC 6.5-25.2V/USB 5V

Power Consumption:720mA at 12V

DVR:H264, 60fps,MOV 6Mbps, SD Card support up to 128Gb

Head Tracker:3-axis Accelerometer, 3-axis gyroscope

Dimentions :185*75*67mm

Weight:267g

1. Goggles*1

2. Receiver Module*1

3. Faceplate*2(wide and narrow)

4. Sponge with velcro*1

5. Zipper case*1

6. Power cable*1

7. Headtracker cable*1

8. 5.8GHz 2dB antennas*2

9. Video/Audio Cable*1

10. USB-C Cable*1

11. User Manual*1

BAND/CHANNEL table:
CH1: (A)5865M, (B)5733M, (E)5705M, (F)5740M, (R)5658M, (L)5362M
CH2: (A)5845M, (B)5752M, (E)5685M, (F)5760M, (R)5695M, (L)5399M
CH3: (A)5825M, (B)5771M, (E)5665M, (F)5780M, (R)5732M, (L)5436M
CH4: (A)5805M, (B)5790M, (E)5645M, (F)5800M, (R)5769M, (L)5473M
CH5: (A)5785M, (B)5809M, (E)5885M, (F)5820M, (R)5806M, (L)5510M
CH6: (A)5765M, (B)5828M, (E)5905M, (F)5840M, (R)5843M, (L)5547M
CH7: (A)5745M, (B)5847M, (E)5925M, (F)5860M, (R)5880M, (L)5584M
CH8: (A)5725M, (B)5866M, (E)5945M, (F)5880M, (R)5917M, (L)5621M
Sensitivity: -98dBm±1dBm
Antenna Port: 2xSMA-K,50ohm

Goggles Focus Adjustment Shuttle Wheel Control SteadyView Receiver 4.3 16.9 10 Languages New UI Advance Screen Setting .

The SteadyView receiver combines two signals into one, resulting in a more stable and clearer image in challenging conditions. Additionally, the module goggles offer greater upgradability capabilities.

Optics have large Field of View(46 degree). and the Optics has Focus adjustment feature (-6+6). no need diopter any more.

The SKYZONE SKY04X V2 FPV goggles feature a high-resolution 1280x960 OLED screen with vivid colors, providing a high contrast ratio that allows pilots to see more details. In comparison, traditional LCD/LCOS screens often lack detail and color, resulting in latency issues.

Four preset screen settings and three customizable options allow you to tailor your viewing experience for indoor, outdoor, or varying weather conditions. Choose from standard, bright, soft, vivid, and 4:3 or 16:9 aspect ratios to suit your FPV needs.

Skyzone's OLED (Shuttle Wheel) control features no more complicated multi-function buttons or 5-way joystick navigation. Instead, enjoy a smooth and natural shutter control experience, making it easy to navigate through menus.

Featuring a new user interface with a shuttle wheel for easy navigation and support for 10 languages to accommodate local users. The device also comes equipped with a built-in fan for DVR functionality, operating at frequencies of around 5.79 MHz.
